APR is pleased to present the ultimate Cast Downpipe Exhaust System!
The APR Cast Downpipe Exhaust System replaces the restrictive factory downpipe and chambered resonator with a larger, 76mm stainless steel mandrel-bent system, featuring a bell-mouth cast inlet, high-flow catalyst and various other features. Expect better throttle response, more horsepower and an intoxicating exhaust note, while remaining civilized during normal daily driving. It’s one of the best performance upgrade for the 1.8 TFSI and 2.0 TFSI following the APR ECU Upgrade and it’s all designed and assembled in-house, using premium materials and world-class manufacturing techniques few can match.
The downpipe is like nothing else on the market. The investment-cast, bell-mouth inlet provides an ultra smooth transition between the turbo’s 80mm outlet and the high quality catalyst’s inlet. All of the tubing in the system is upgraded from the awkwardly-kinked, 60mm tubing to attractively-brushed, straight-through and mandrel-bent 76mm tubing. The CNC laser cut bracket provides a strong and accurately positioned mounting point to take the weight of the downpipe off the turbocharger, and the internally-corrugated flex section gives the downpipe the flex it needs under engine movement. Finally, the downpipe uses T304L stainless steel components that are TIG welded together with argon back-purging, ensuring the system not only looks great on the inside and out, but stands the test of time.
The APR Cast Downpipe Exhaust System is a “full” downpipe, as it also includes the midpipe section underneath the vehicle. The factory midpipe uses awkwardly-kinked, 60mm tubing with some systems featuring a chambered resonator that poses a large restriction, especially vehicles with upgraded turbochargers. The APR midpipe eliminates the front resonator, giving the exhaust a slightly more aggressive note, while eliminating performance robbing restrictions. Finally, the midpipe uses attractively-brushed, straight-through and mandrel-bent 76mm T304L stainless steel tubing.
The APR midpipe use an OEM-style flex section that is fully sealed with a corrugated inner lining to improve flow and reliability. The low profile design and minimal use of bradding material eliminates clearance issues common with other designs that can billow, rub, rattle and fray over time. The flex section is constructed from T304L stainless steel and is argon back-purged when TIG welded to the downpipe.
APR’s engineers specified a high-quality and high-flow GESI metal 300-cell catalyst ideal for forced induction application. During dyno testing, the 100mm x 100mm design showed no measurable loss in power, thanks to the catalyst’s design.
Internally the catalytic converter feature a proprietary wash coat that helps to reduce emissions and smell common on cat-less setups. The low-profile catalyst features a fully captured substrate brick, which is furnace braised to the outer mantle and physically captured by the diffuser cones preventing rattling, rotation, and damage to the substrate. Subsequently, a byproduct of running the catalyst is a reduction in noise, making the system as a whole more pleasing to the ear.
Attached to the downpipe is a high quality mounting bracket. The bracket is constructed from T304L stainless steel and is CNC-machined and CNC-bent to exact tolerances. The bracket is TIG welded to the piping and argon back-purged.
APR’s engineers specified a T304L stainless steel, OEM-style exhaust clamp designed to eliminate the need for flanges, swedging, or slip fittings. By using this low profile design, the exhaust system can be positioned higher in the exhaust tunnel and away from the ground with better clearances compared to flanged setups. Each clamp allows for less turbulence and greater accuracy at the connection points as the pipes simply butt up to one another rather than the ambiguity and voids associated with swedged slip fittings. Furthermore, the clamp doesn’t rely on deforming the pipe to provide a tight seal, making install and removal more convenient.
APR’s Engineers paid special attention to the details when designing the APR Cast Downpipe Exhaust System all the way down to the oxygen sensor bung. APR’s O2 bung is investment cast from T304L stainless steel and is curved to perfectly fit on the catalyst, without protruding into the pipe, as this would further impede airflow beyond the sensor itself. The bung is TIG welded to the piping and argon back-purging is used to ensure the interior surface is smooth and clean.
A simple and removable, T304L stainless steel reducer, featuring a smooth transition, is included, making the APR Cast Downpipe Exhaust System directly compatible with the OEM catback exhaust system.

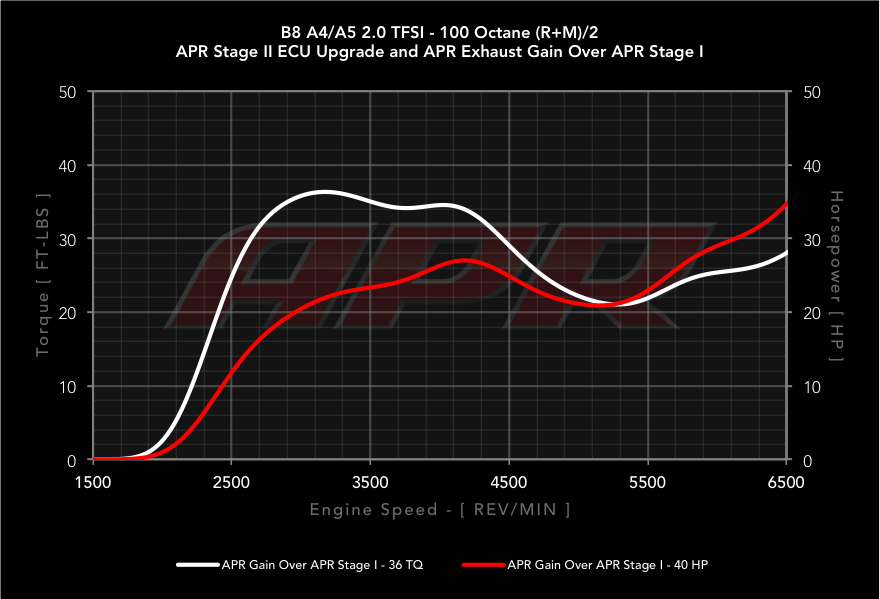

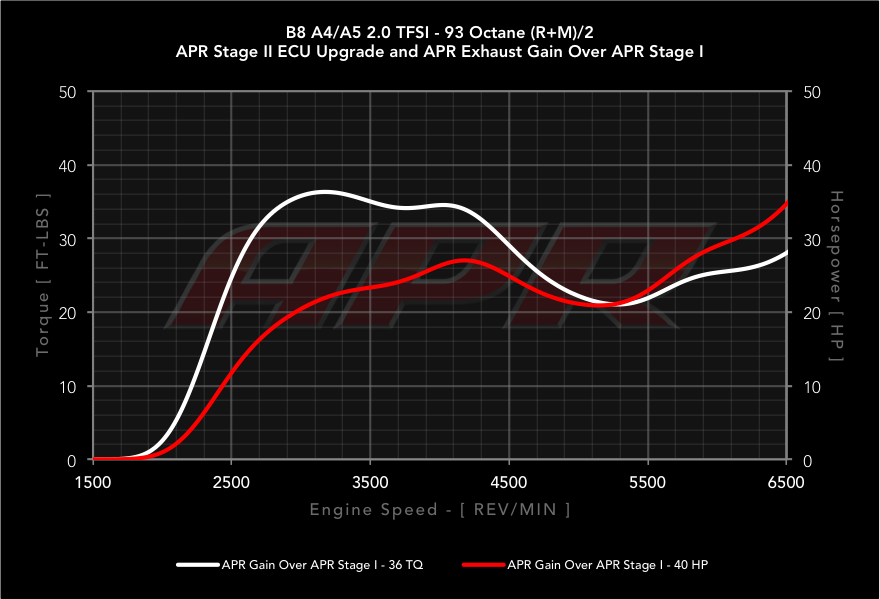

|Vehicle||Fuel||Max HP||Max TQ||Max HP Gain
Over APR Stage I
|Max TQ Gain
Over APR Stage I
|- APR recommends and tuned with Sunoco GT 260 for 100 AKI mode and Sunoco GT 260 Plus for 104 AKI mode. Never use lower octane than specified by the mode.|
|- Max increases are based on APR's actual measured stock values and not those reported by VAG. | RON = ROW Fuel Grades | AKI = North American (RON+MON)/2 Fuel Grades.|

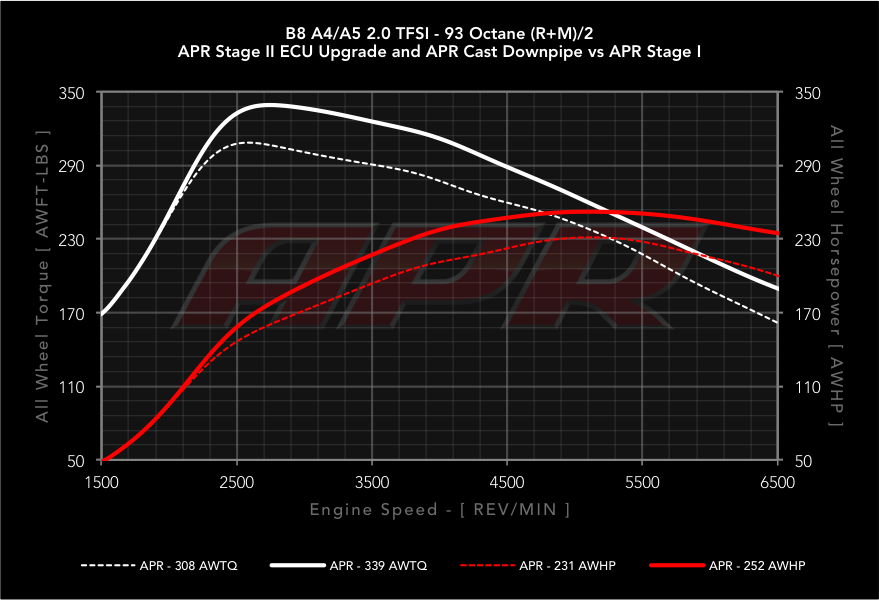

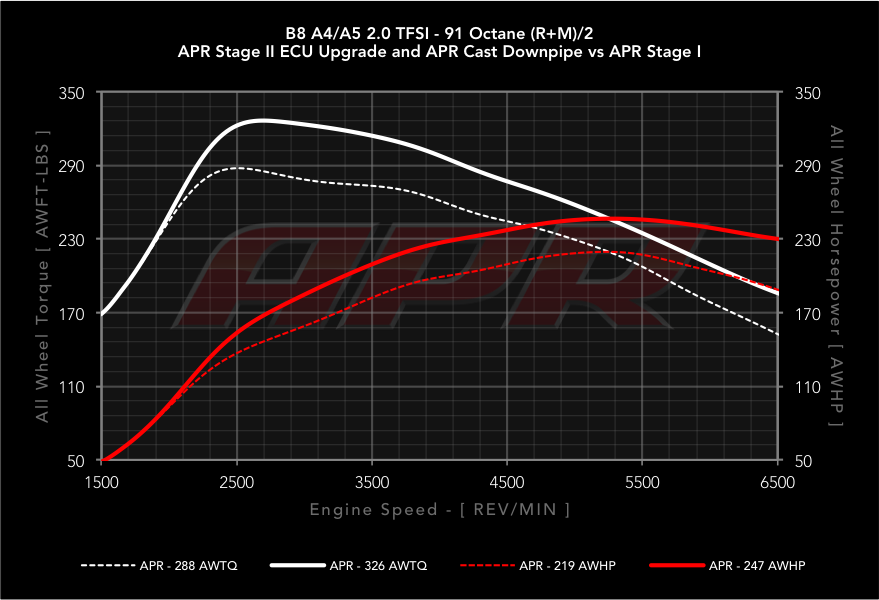

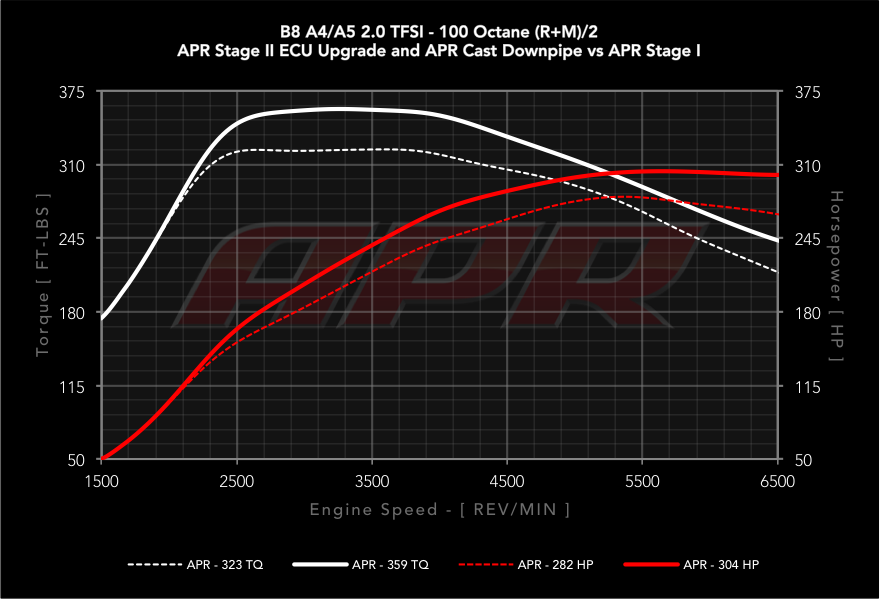

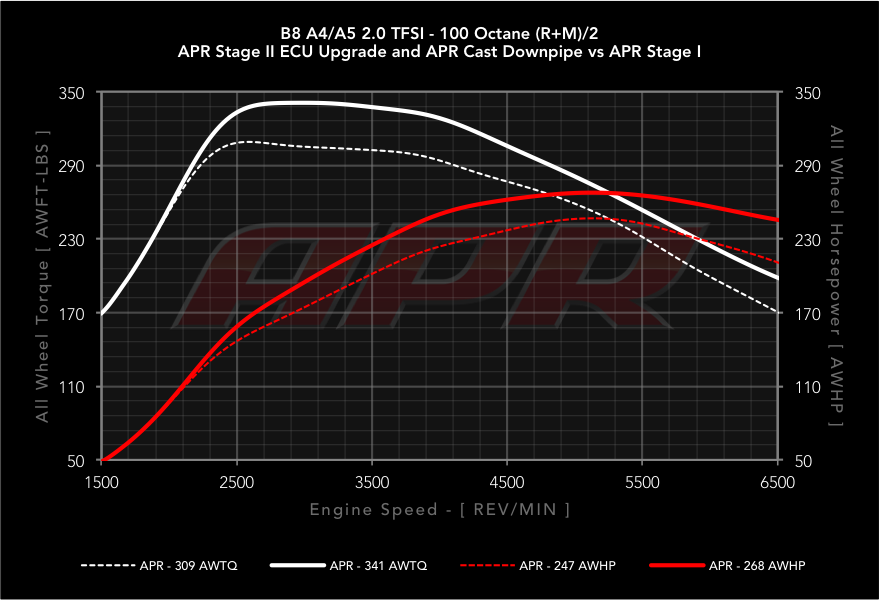

|- Reported wheel figures measured using APR's AWD Dynapack with multiple vehicles, using SAE correction and an average of multiple runs for all figures. Stage II included a high flow downpipe. Crank figures are estimated based on the measured wheel figures. Results may vary depending upon environmental conditions, vehicle, transmission, vehicle health, operating conditions, temperatures, fuel grade, dyno type, dyno setup, other variables and other modifications.|

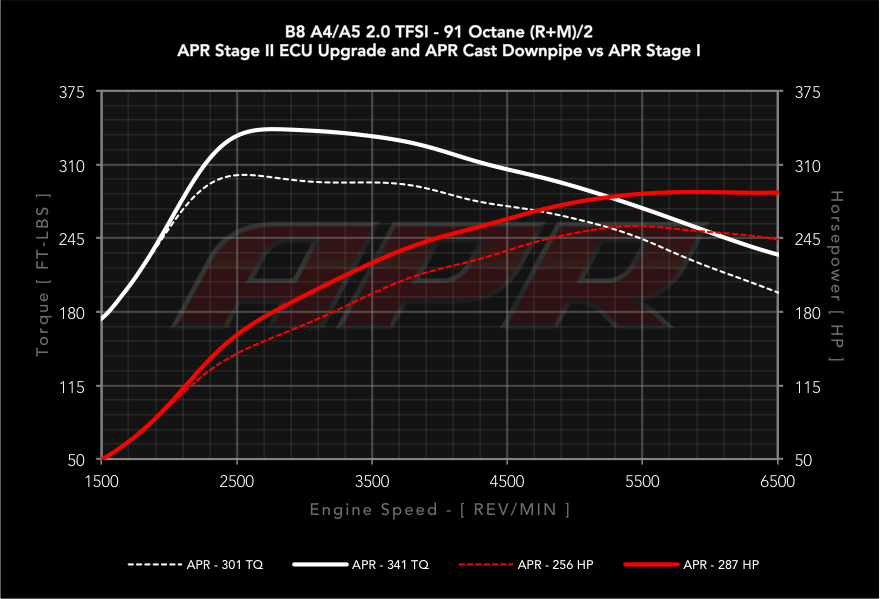

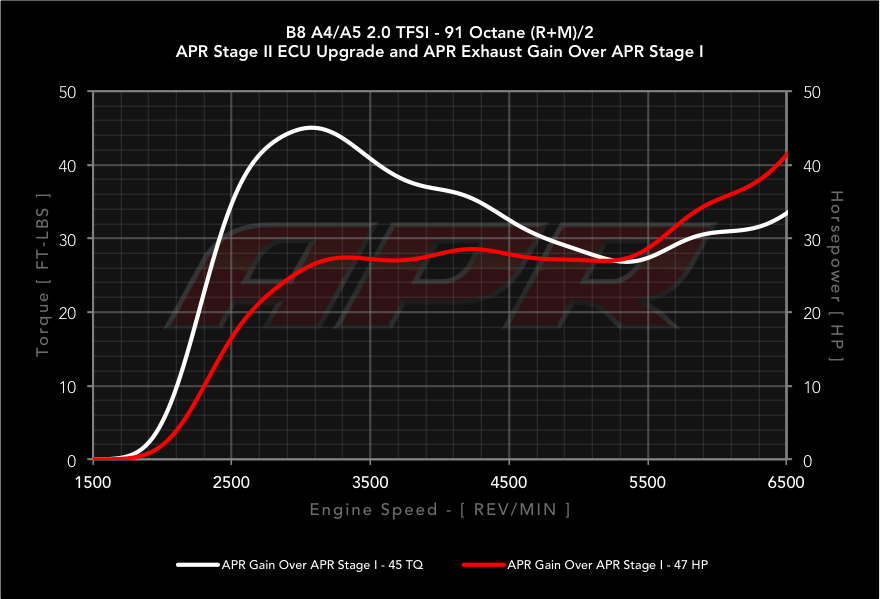

|Audi A4 (B8)||95 RON||287 HP||341 FT-LBS||+47 HP @ 6,700 RPM||+45 TQ @ 3,100 RPM|

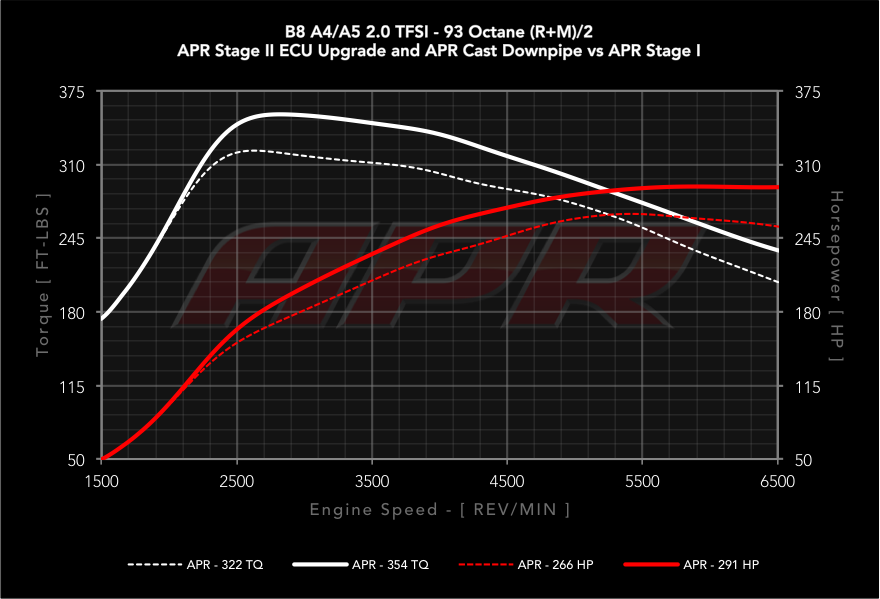

|Audi A4 (B8)||98 RON||291 HP||354 FT-LBS||+40 HP @ 6,700 RPM||+36 TQ @ 3,150 RPM|
|Audi A4 (B8)||104 RON||304 HP||359 FT-LBS||+40 HP @ 6,700 RPM||+36 TQ @ 3,150 RPM|
In the past APR worked with other manufacturers to develop a limited range of private-label exhaust systems outside the scope of APR’s internal development and manufacturing capabilities. Understanding the limits of such a program, combined with APR’s desire to deliver higher-quality products in a timely manner with better customer support, APR invested in internalizing the program. With the release of this exhaust system and the others like it, APR is pleased to present our first systems fully designed and engineered in-house from the ground up!

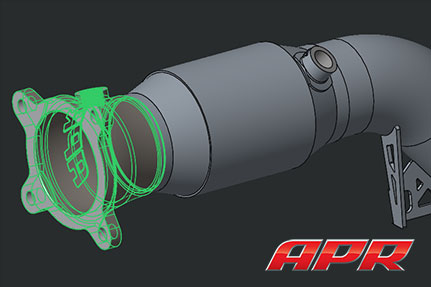

Design and development begins with the use of APR’s professional grade in-house coordinate measuring machines. APR’s engineers have full access to a Romer Absolute arm with integrated laser scanner, FaroArm and Creaform 3D laser scanner for collection of special constraints surrounding the factory exhaust system. The engineers scan the vehicles and create detailed 3D maps of their design environment while designing each system in PTC Creo 3.0 CAD software.
Using APR’s in-house stereolithography 3D printer, rapid prototypes are created for fitment on the vehicle. The design is easily and quickly verified, and if necessary, changes can be made. Once adequate clearances and fitment is confirmed, especially in areas that move under load, physical quick-cast prototypes are created and fitted for final verification through real-world use.
APR’s world-class manufacturing partners from around the globe are responsible for manufacturing each component that falls outside of APR’s internal capabilities. Working closely with each manufacturer, APR’s engineers supply CAD models, materials specs, and other design specifications and work hand-in-hand with the manufacturer to develop the components. The end result is a collection of components, wholly unique to the APR name, awaiting final finishing, assembly and quality control at APR’s 78,000 square foot facility in Opelika, Alabama in the USA.
Manufacturing takes place both internally and externally to APR while finishing and assembly is completed in-house. APR’s fabrication team sends each cast component through the ceramic vibrating tumblers to smooth and de-burr surface imperfections. Each component is then cleaned by hand and prepared for assembly.
APR’s fabrication experts TIG weld each component, creating reliable, high quality and attractive welds. Each component is back-purged with argon during the process ensuring the weld is strong and consistent, as well as clean throughout. With this process complete, the APR Cast Downpipe Exhaust System is born!
APR has placed a large emphasis on improving quality control across various product lines, and the exhaust program is not excluded. To ensure the systems are delivered as advertised, APR’s engineers have taken a multi-step approach that encompasses many techniques that go beyond the industry standard.
APR’s engineers request full metallurgy reports with each batch of components to ensure the components are made with the material grades specified on the original design prints. This information is then cross-referenced against randomly selected and independently tested samples before the components are released for assembly.

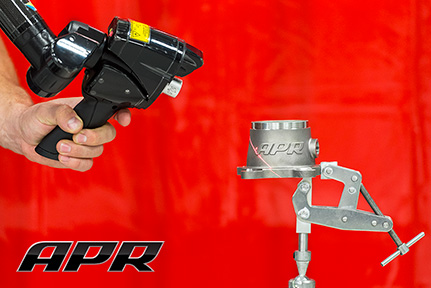

Great designs only matter if the manufacturer delivers the components as expected. To help ensure the designs are as specified, APR’s engineers randomly select components and conduct full dimensional inspections using in-house 3D laser scanning equipment. Tolerances are digitally checked against the original specifications and passed or failed based on the results.

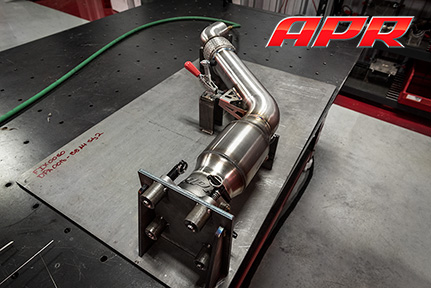

Operating in an environment designed for accuracy and repeatability, APR’s fabrication experts leave little room for error during the final assembly phase. Jigs and fixtures, created in-house, live on custom-specified fabrication tables. This working environment ensures the highest level of quality control during the assembly process and safeguards against dimensional variations potentially created during the manufacturing process. The end result is a system that fits every time as it’s true to the original design specifications.
When hand-building the products in-house, an extra level of control takes place. Components are visually checked for imperfections, and items that fall out of quality standards are rejected. The products are then packaged with care before being distributed across the world.
APR’s confidence in the system’s quality allows for a limited lifetime warranty.
|Vehicle||Engine||Drivetrain||Part Number||Price Exc. VAT||Price Inc. VAT|
|Audi A4 / Allroad (8K - B8 & B8.5)||1.8 TFSI EA888 Gen 1 & 2.0 TFSI EA888 Gen 2||Quattro - RHD|
|Audi A5 (8T - B8 & B8.5)||1.8 TFSI EA888 Gen 1 & 2.0 TFSI EA888 Gen 2||Quattro - RHD|
|Audi Q5 (8R)||1.8 TFSI EA888 Gen 1 & 2.0 TFSI EA888 Gen 2||Quattro - RHD|
|Vehicle||Engine||Retail Price||Price with Purchase of the APR Cast Downpipe Exhaust System|
|IMPORTANT PRICING AND AVAILABILITY DETAILS:|
|- Availability and ECU Compatibility: Stages, programs, and features may not be available for all ECUs.|
|- ECU Revision Notice: Multiple ECU revisions exist for each platform. APR software may be temporarily unavailable when factory updates are applied. An APR dealer can check availability in person, or over the phone if the ECU boxcode/revision is known.|
|- Stage II Pricing: Customers who have purchased an APR ECU Upgrade before February 16th, 2015 are exempt from upgrade fees.|
|Audi A4 (8K - B8 & B8.5)||2.0 TFSI EA888 Gen 2||£120 Inc. VAT||Free!|
|Audi A5 (8T - B8 & B8.5)||2.0 TFSI EA888 Gen 2||£120 Inc. VAT||Free!|
|Audi Q5 (8R)||2.0 TFSI EA888 Gen 2||£120 Inc. VAT||Free!|
